Door Threshold Plates provide a solid & effective surface for door seals to rest against. Threshold Ramps allow access for those needing wheelchairs, or other mobility aides.

A threshold plate helps a seal effectively block rain, sound, draught & smoke. It can also cover joins between different flooring materials.

Jim Roberts Locksmiths is an industry preferred supplier of architectural seals & thresholds. Our experienced team of professionals will provide the sealing solution you need & as well as meet legislative requirements. Contact our team now!

Our Best Selling Thresholds…

Folding T-Handle Barrel

IS4010 75mm Heavy Duty Low Profile Threshold  Plate

  • A heavy-duty, low profile threshold plate used in conjunction with other Kilargo door bottom seals to help prevent rain infiltration, draught and smoke penetration.
  • 6mm low profile design ensures compliance with the ‘access for people with disability’ requirements, AS1428/1 and NCC D2.15 & D3.3, particularly for wheelchair traffic.
  • Durable, anodised finish and is supplied with PVC bedding pads to help eliminate vibration, noise and moisture ingress.
  • Standard lengths:
    • 1000mm
    • 2250mm
    • Also available in: 250mm increments from 1000mm to 5000mm
  • Available Finishes:
    • Silver anodised aluminium
    • Bronze anodised aluminium
  • Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
  • Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
  • Complies with AS1428/1 (Design for access and mobility
  • Conforms to NCC D2.15 & D3.3 (Access for people with disabilities)
Folding T-Handle Barrel

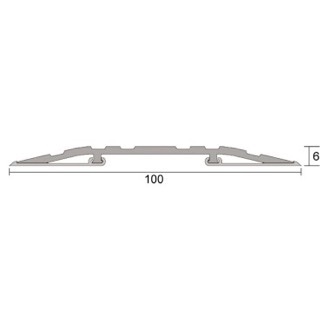

IS4015 100mm Heavy Duty Low Profile Threshold  Plate

  • A heavy-duty, low profile threshold plate used in conjunction with other Kilargo door bottom seals to help prevent rain infiltration, draught and smoke penetration.
  • 6mm low profile design ensures compliance with the ‘access for people with disability’ requirements, AS1428/1 and NCC D2.15 & D3.3, particularly for wheelchair traffic.
  • Durable, anodised finish and is supplied with PVC bedding pads to help eliminate vibration, noise and moisture ingress.
  • Standard lengths:
    • 1000mm
    • 2250mm
    • Also available in: 250mm increments from 1000mm to 5000mm
  • Available Finishes:
    • Silver anodised aluminium
    • Bronze anodised aluminium
    • Black anodised aluminium
  • Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
  • Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
  • Complies with AS1428/1 (Design for access and mobility
  • Conforms to NCC D2.15 & D3.3 (Access for people with disabilities)
Folding T-Handle Barrel

IS4020 125mm Heavy Duty Low Profile Threshold  Plate

  • A heavy-duty, low profile threshold plate used in conjunction with other Kilargo door bottom seals to help prevent rain infiltration, draught and smoke penetration.
  • 6mm low profile design ensures compliance with the ‘access for people with disability’ requirements, AS1428/1 and NCC D2.15 & D3.3, particularly for wheelchair traffic.
  • Durable, anodised finish and is supplied with PVC bedding pads to help eliminate vibration, noise and moisture ingress.
  • Standard lengths:
    • 1000mm
    • 2250mm
    • Also available in: 250mm increments from 1000mm to 5000mm
  • Available Finishes:
    • Silver anodised aluminium
    • Bronze anodised aluminium
  • Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
  • Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
  • Complies with AS1428/1 (Design for access and mobility
  • Conforms to NCC D2.15 & D3.3 (Access for people with disabilities)
Folding T-Handle Barrel

IS4025 150mm Heavy Duty Low Profile Threshold  Plate

  • A heavy-duty, low profile threshold plate used in conjunction with other Kilargo door bottom seals to help prevent rain infiltration, draught and smoke penetration.
  • 6mm low profile design ensures compliance with the ‘access for people with disability’ requirements, AS1428/1 and NCC D2.15 & D3.3, particularly for wheelchair traffic.
  • Durable, anodised finish and is supplied with PVC bedding pads to help eliminate vibration, noise and moisture ingress.
  • Standard lengths:
    • 1000mm
    • 2250mm
    • Also available in: 250mm increments from 1000mm to 5000mm
  • Available Finishes:
    • Silver anodised aluminium
  • Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
  • Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
  • Complies with AS1428/1 (Design for access and mobility
  • Conforms to NCC D2.15 & D3.3 (Access for people with disabilities)
Folding T-Handle Barrel

IS4070 Threshold Ramp

  • These threshold ramps are utilised in buildings where wheelchairs and trolleys are used or to compensate for uneven floors.
  • Their rate of incline ensures compliance with the ‘access for people with disability’ requirement, particularly for wheelchair traffic.
  • These threshold ramps have a durable, anodised finish and are supplied with PVC bedding pads to help eliminate vibration, noise and moisture ingress.
  • Gradient: 1:8
  • Standard Lengths:
    • 1000mm
    • 2250mm
    • Also available in: 250mm increments from 1000mm to 5000mm
    • Width: 100mm
    • Height: 14mm
  • Available Finishes:
    • Silver anodised aluminium
  • Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
  • Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
    Complies with AS1428/1 (Design for access and mobility)
  • Conforms to NCC D2.15 & D3.3 (Access for people with disabilities)
Folding T-Handle Barrel

IS4075 Threshold Ramp

  • These threshold ramps are utilised in buildings where wheelchairs and trolleys are used or to compensate for uneven floors.
  • Their rate of incline ensures compliance with the ‘access for people with disability’ requirement, particularly for wheelchair traffic.
  • These threshold ramps have a durable, anodised finish and are supplied with PVC bedding pads to help eliminate vibration, noise and moisture ingress.
  • Gradient: 1:8
  • Standard Lengths:
    • 1000mm
    • 2250mm
    • Also available in: 250mm increments from 1000mm to 5000mm
    • Width: 150mm
    • Height: 14mm
  • Available Finishes:
    • Silver anodised aluminium
  • Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
  • Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
    Complies with AS1428/1 (Design for access and mobility)
  • Conforms to NCC D2.15 & D3.3 (Access for people with disabilities)
Folding T-Handle Barrel

IS4077 Threshold Ramp

  • These threshold ramps are utilised in buildings where wheelchairs and trolleys are used or to compensate for uneven floors.
  • Their rate of incline ensures compliance with the ‘access for people with disability’ requirement, particularly for wheelchair traffic.
  • These threshold ramps have a durable, anodised finish and are supplied with PVC bedding pads to help eliminate vibration, noise and moisture ingress.
  • Gradient: 1:8
  • Standard Lengths:
    • 1000mm
    • 2250mm
    • Also available in: 250mm increments from 1000mm to 5000mm
    • Width: 150mm
    • Height: 19mm
  • Available Finishes:
    • Silver anodised aluminium
    • Bronze anodised aluminium
  • Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
  • Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
    Complies with AS1428/1 (Design for access and mobility)
  • Conforms to NCC D2.15 & D3.3 (Access for people with disabilities)
