Door Seals provide a containment solution for fire, smoke, sounds, vermin & weather.
Protecting the gap between the door & door frame, there is a range of seals designed for commercial & industrial buildings & facilities.
Jim Roberts Locksmiths is an industry preferred supplier of architectural seals & thresholds. Our experienced team of professionals will provide the sealing solution you need & as well as meet legislative requirements. Contact our team now!
Our Best Selling Door Seals…

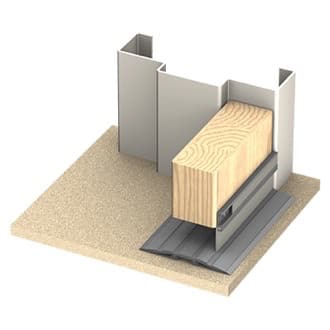

IS3080SI Sweep Action Bottom Door Seal – Heavy Duty
- A sweep action blade seal with a high-performance silicone rubber fin
- Can be fitted to door bottoms of outward opening
- Can also be utilised as a meeting stile seal for pairs of doors.
- Can provide effective containment against ambient and medium temperature smoke, sound, dust, light, insects and weather.
- Standard Lengths available in 1000mm & 2250mm. Also available in: 250mm increments from 1000mm to 5000mm
- Finishes: Silver anodised aluminium section with grey silicone gasket and grey cover strip / Black anodised aluminium section with black silicone gasket and black cover strip
- Fixing screws are supplied with detailed fitting instructions
- Fixing holes are pre-drilled and slotted to allow the seals to be easily adjusted and positioned accurately on the door to suit the appropriate gap size
- Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1 Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
- Conforms with BCA Specification C3.4 smoke sealing requirements
- Acoustically tested in accordance with AS1191, IS0140.3 & ISO10140-2
IS3100SI Storm Seal & Threshold Set
- Set incorporates an IS3070si door bottom seal plus an IS4100si threshold plate. The IS3070si weather-resistant door bottom seal can be fitted without removing the door and can be used with alternative threshold plates. This seal provides effective containment against cold smoke, sound, dust, light, insects and weather. The aesthetic cover strip ensures there is no visible screw line.
- Gap Size – Min. 21mm / max. 24mm
- Lengths Available: 1000mm & 2250mm, also available in 250mm increments from 1000mm to 5000mm
- Finish: Silver anodised aluminium carrier with grey silicone gasket and cover strip (Black silicone gasket and cover strip also available upon request)
- Fixing screws are supplied with detailed fitting instructions
- Fixing holes are pre-drilled and slotted to allow the seals to be adjusted and positioned accurately
- Conforms to BCA Specification C3.4 smoke sealing requirementsAcoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
RP26 Blade Sweep Seal Black
- Heavy-duty sweep seal for door bottoms of outward opening doors.
- Slotted fixing holes allow for adjustment all concealed behind a push in cover strip.
- Min/Max Gap: 5mm to 20mm
- Standard Lengths: Available in 1000mm, 1250mm, 1500mm, 2000mm, 3000mm.
- Available Finishes:
- Satin clear (silver)
- bronze anodised aluminium
- Fire: AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1.
- UK/EU: Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
- FRL & FRR-/120/30 and FD120.
- Energy: NCC Pt. 3.12.3.3 & J3.4.
- Insects/Vermin AS4674, 2.1.5(iv), 2.1.7.
IS8011SI Automatic Door – Medium Duty
- Medium duty, automatic door bottom seal
- Can be face-fixed or semi-rebated to the bottom edge of single action doors.
- Operates automatically by a spring loaded mechanism which lifts the seal clear of the floor as soon as the door is opened.
- Seal is fixed to the face of the door bottom using the ferrules and mounting screws provided.
- For semi-rebated, the seal is mounted into a 35mm deep x 14mm wide machined groove in the side of the door where the seal is to be positioned.
- Seal operates automatically by pressure against the door jamb on its adjustable strike button.
- The seal contains a high efficiency mechanism to assist with the closing force requirements detailed in AS1428/1 (Design for Access and Mobility).
- Aesthetic, nylon push-fit end plates ensure longevity of the seal mechanism.
- Min/Max Gap: Min. 3mm / max. 15mm
- Lengths Available: 380mm, 600mm, 820mm, 920mm, 1070mm, 1220mm
- Maxium Allowable Cut Back Sizes:
- 380mm seal cuts to 275mm
- 600mm seal cuts to 380mm
- 820mm seal cuts to 600mm
- 920mm seal cuts to 820mm
- 1070mm seal cuts to 920mm
- 1220mm seal cuts to 1070mm
- (*Seals can be cut on site for exact dimension)
- Available Finishes:
- Silver anodised aluminium with grey end plates and grey silicone gasket
- Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
- Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
- Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies
- Conforms with BCA Specification C3.4 smoke sealing requirements
- Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
- Durability tests demonstrating over 1,000,000 open and close cycles
IS8090SI Automatic Bottom Door Seal – Heavy Duty
- Heavy-duty, automatic door bottom seal
- Can be semi-rebated or face fixed to the bottom edge of single action doors.
- Seal has a spring loaded mechanism which lifts the seal clear of the floor as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically
- The seal contains a high-efficiency mechanism to assist with the closing force requirements detailed in AS1428/1 (Design for Access and Mobility).
- Min/Max Gap: Min. 3mm / max. 15mm
- Lengths Available: 450mm, 610mm, 820mm, 920mm, 1070mm, 1220mm, 1500mm (*Longer length available to special order up to a maximum 1600mm)
- Maximum Allowable Cut Back Sizes:
- 450mm seal cuts to 275mm
- 610mm seal cuts to 450mm
- 820mm seal cuts to 610mm
- 920mm seal cuts to 610mm
- 1070mm seal cuts to 920mm
- 1220mm seal cuts to 1070mm
- 1500mm seal cuts to 1220mm
(*Seals can be cut on-site to exact dimension)
- Finishes Available:
- Silver anodised aluminium with grey endplates (or cast aluminium end plates) and grey silicone gasket
- Black anodised aluminium with black end plates (or black cast aluminium end plates) and black silicone gasket
- Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
- Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
- Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies
- Conforms with BCA Specification C3.4 smoke sealing requirements
- Acoustically tested in accordance with AS1191, IS0140.3 & ISO10140-2
- Durability tests demonstrating over 1,000,000 open and close cycles
IS7025SI Perimeter Seal
- Popular slim-line, door frame perimeter seal, designed to be fitted to an existing door stop, around the head and jambs of single swing doors.
- Min/Max Gap: Min. 0mm / max. 6mm
- Door Set Standard Lengths:
- Single: 1 x 1000mm, 2 x 2100mm
- Long Single: 1 x 1000mm, 2 x 2750mm
- Double: 3 x 2100mm
- Long Double: 1 x 2100mm, 2 x 2750mm
- Standard Lengths:
- 1000mm
- 2250mm
- Also available in: 250mm increments from 1000mm to 5000mm
- Available Finishes:
- Silver anodised aluminium with grey silicone gasket and grey cover strip
- Black anodised aluminium with black silicone gasket and black cover strip
- Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
- Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
- Acoustically tested in accordance with AS1191, IS0140.3 & ISO10140-2
IS7080SI Perimeter Seal
-
Aesthetically designed, compact perimeter seal
-
Proven to be an effective acoustic, cold smoke, light and weather seal.
-
Can be installed in lieu of a doorstop on both steel and timber door frames (where frames are non fire-rated).
-
Decorative cover strip is supplied to conceal fixings.
-
The IS7080si version (silicone gasket) has been successfully tested on proprietary fire door assemblies (mounted on a 25mm frame stop).
- Min/Max Gap: Min. 0mm / max. 10mm
- Door Set Standard Lengths:
- Single: 1 x 1000mm, 2 x 2100mm
- Long Single: 1 x 1000mm, 2 x 2750mm
- Double: 3 x 2100mm
- Long Double: 1 x 2100mm, 2 x 2750mm
- Standard Lengths:
- 1000mm
- 2250mm
- Also available in: 250mm increments from 1000mm to 5000mm
- Available Finishes:
- Silver anodised aluminium with grey silicone gasket and grey cover strip
- Black anodised aluminium with black silicone gasket and black cover strip
- Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
- Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
- Acoustically tested in accordance with AS1191, IS0140.3 & ISO10140-2
IS7060SI Astragal Seal
- Astragal seal used with either plain or rebated meeting stiles on single swing, double doors (where only one door leaf is active).
- Provides an excellent acoustic, smoke, light, dust and weather seal.
- Thin fixing leg allows this seal to be face fixed to the door (no rebating required). This leg can also be checked to make way for locks and latches.
- Min/Max Gap Size: Min. 2.5mm / max. 10mm
- Standard Lengths:
- 2250mm
- 3000mm
- Also available in: 250mm increments from 2000mm to 3500mm
- Available Finishes:
- Silver anodised aluminium with grey silicone gasket
- Black anodised aluminium with black silicone gasket
- A door sequence selector should be considered unless one leaf is intended to be fixed
- Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies.
- Conforms with BCA Specification C3.4 smoke sealing requirements
- Acoustically tested in accordance with AS1191, IS0140.3 & ISO10140-2
IS7062 T Piece Astragal Seal
- Heavy-duty astragal seal used with either plain or rebated meeting stiles on single swing, double doors (where only one door leaf is active).
- Provides privacy and security along the length of the meeting stile.
- The mounting leg is drilled and countersunk to allow for left and right handed installation.
- Standard Lengths:
- 2250mm
- 2500mm
- 3000mm
- Available Finishes:
- Silver anodised aluminium finish
- A door sequence selector should be considered unless one leaf is intended to be fixed
IS9010 Overhead Drip Guard Seal
- Designed to channel rainwater away from exposed doors, particularly those which open outward.
- An aesthetic PVC cover strip conceals the screw line.
- Suitable for single and double-leaf doors, sliding doors, roller shutter doors, plus tilt panels.
- Standard Lengths:
- 1000mm
- 2250mm
- Also available in: 250mm increments from 1000mm to 3000mm
- Available Finishes:
- Silver anodised aluminium with grey PVC cover strip
